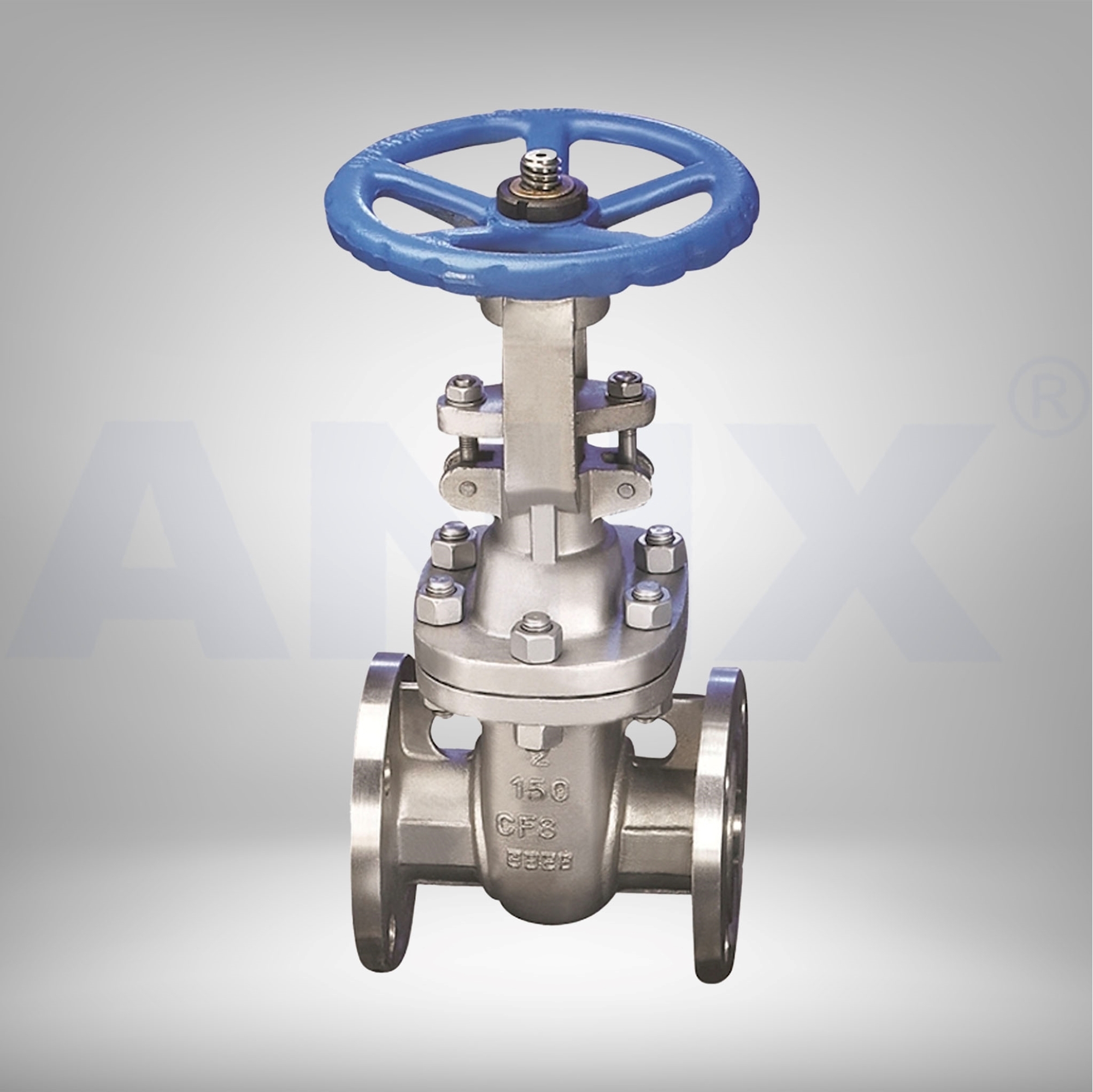

ANIX Stainless Steel Gate Valve Class 150 / 300 RF

  • Stainless Steel Flanged Gate Valve Trim 10
  • • Sizes available: 1/2" to 14"
  • Features
  • • Also Known as ANIX CF8M Gate Valve
  • • OS & Yoke, Rising Stem, Wedge type, Flange End
  • • Standard Graphite Packing & Gasket
  • • Other Gasket Material can be made available.
  • • Design and Manufacture according to API 600 or API 602.
  • • Face-to-Face dimension according to ASME B16.10 - 2009
  • • End Flange Dimension according to ASME B16.5 - 2009
  • • Inspection and Test according to API 598 - 2009
ANIX Part Number: GA40W6F Series

CF8M Flanged Gate Valve Class 150#

CF8M Flanged Gate Valve ANSI 150 Product Catalog.

Download GA40W6F/150 Flanged Gate Valve Data Sheet.

CF8M Flanged Gate Valve Class 300#

CF8M Flanged Gate Valve ANSI ANSI 300 Product Catalog.

Download GA40W6F/300 Flanged Gate Valve Data Sheet.

Product Description

Introducing the ANIX Stainless Steel Flanged Gate Valve Trim 10, offered in ANSI 150 / ANSI 300 specifications, also recognized as the ANIX CF8M Gate Valve. Featuring an OS & Yoke design with Rising Stem, Wedge type construction, and Flange End connection, this valve ensures robust performance and reliable flow control. Equipped with Standard Graphite Packing & Gasket, with the option for other gasket materials upon request, this valve offers versatility to suit various applications. Designed and manufactured in compliance with API 600 or API 602 standards, it guarantees exceptional quality and durability. Its Face-to-Face dimensions adhere to ASME B16.10 - 2009 standards, while End Flange Dimensions follow ASME B16.5 - 2009, ensuring seamless integration with existing systems. Rigorously inspected and tested according to API 598 - 2009 standards, this valve offers unmatched reliability and operational integrity. Elevate your industrial setup with the ANIX Stainless Steel Flanged Gate Valve Trim 10, providing efficient and precise flow control across diverse applications.
