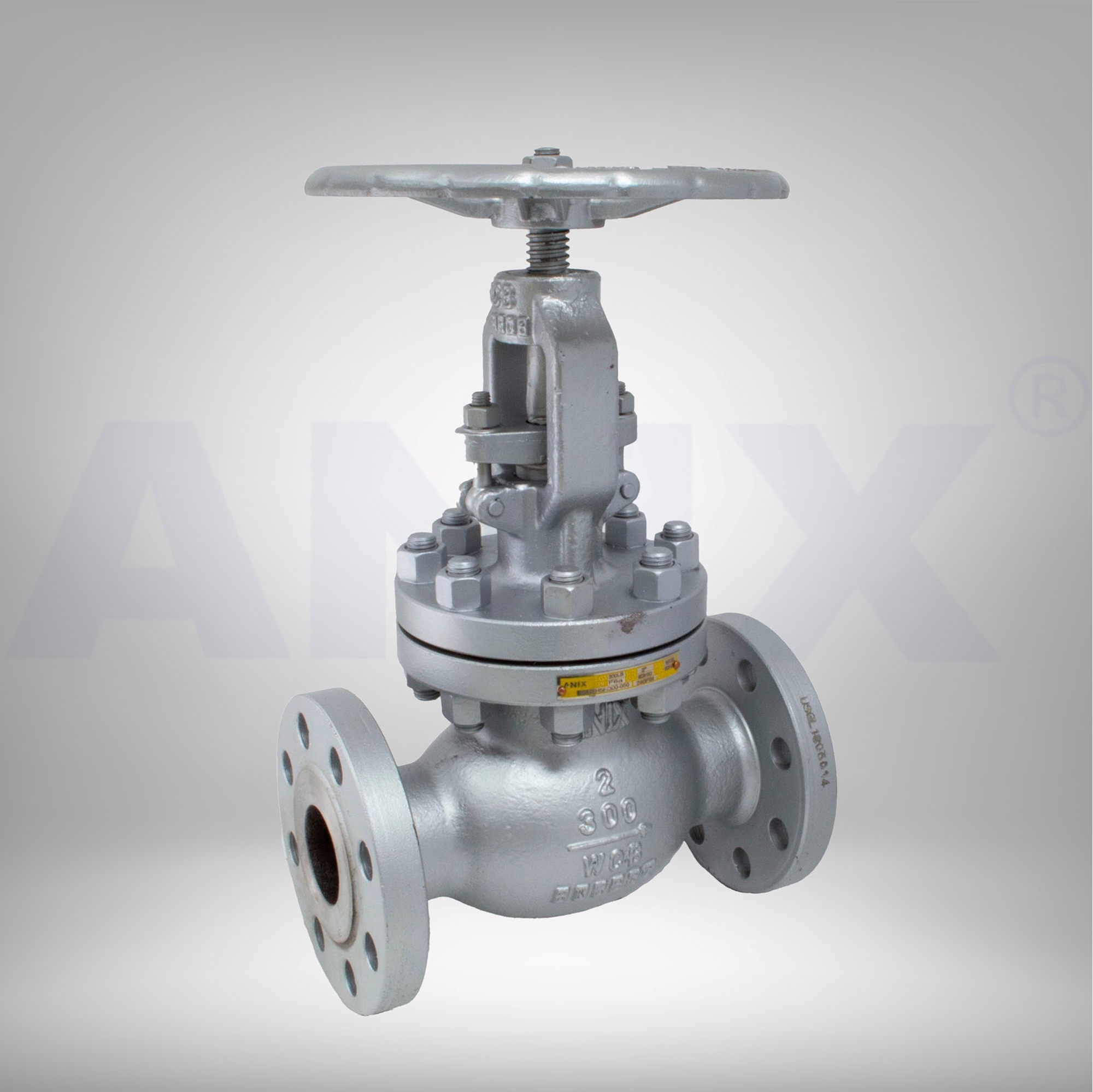

ANIX Carbon Steel Globe Valve - RF, Trim 8, Class 150 / 300 / 600

Known as Cast Steel, Carbon Steel, WCB or CS Globe Valve
Sizes available : 1/2" ~ 12"
Size 14" ~ 20" available for made-to-order only.
Class 600 available for made-to order only.



  • - Outside Screw & Yoke, Rising Stem, Flange End
  • - Standard Graphite Packing
  • - Other gasket material can be made available
  • - Design and Manufacture according ANSI B16.34 - 2009
  • - Face-to-Face dimensions according to ASME B16.10 - 2009
  • - End Flange Dimension according to ASME B16.5 - 2009
  • - Inspection and Test according to API 598 - 2009



ANIX Part Number: GL41H5F Series

WCB Flanged Globe Valve Class 150#

Download GL41H5F/150 Flanged Globe Valve Cut Sheet.

Download WCB Flanged Globe Valve ANSI 150 Product Literature.



WCB Flanged Globe Valve Class 300#

Download GL41H5F/300 Flanged Globe Valve Cut Sheet.

Download WCB Flanged Globe Valve ANSI 300 Product Literature.



  • - ANIX Carbon Steel Flanged Glove Valve Trim 8 ANSI 150 / ANSI 300
  • - Also known as WCB, CS or Cast Steel valve
  • - Outside Screw & Yoke, Rising Stem, Flange End
  • - Standard Graphite Packing
  • - Other gasket material can be made available
  • - Design and Manufacture according ANSI B16.34 - 2009
  • - Face-to-Face dimensions according to ASME B16.10 - 2009
  • - End Flange Dimension according to ASME B16.5 - 2009
  • - Inspection and Test according to API 598 - 2009



ANIX Carbon Steel Globe Valves with Flange end connection manufactured and distributed by ANIX Valve USA are available in Class 150 or Class 300 type made of high quality WCB Carbon steel material.
