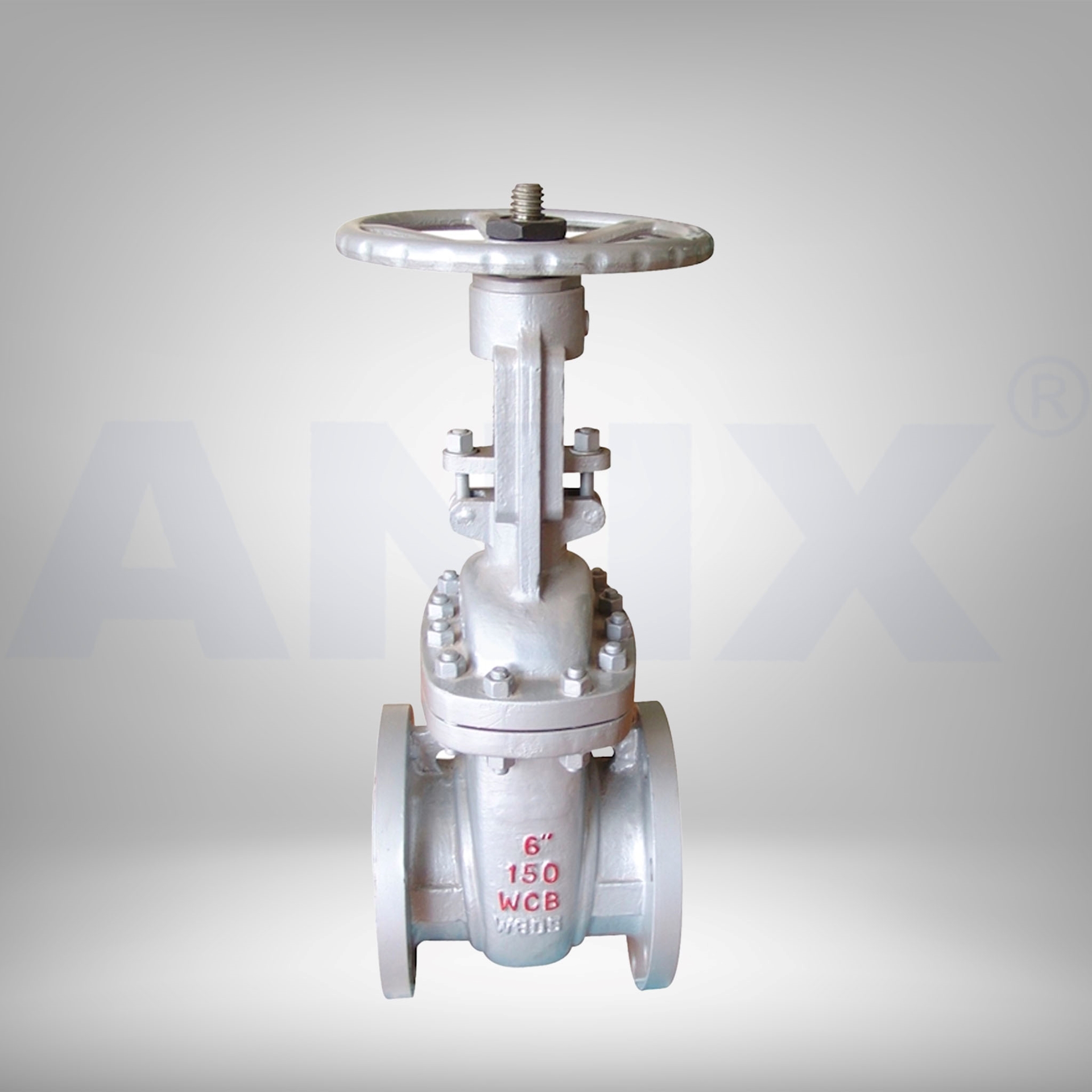

ANIX Carbon Steel Gate Valve - RF, Trim 8 Class 150 / 300 / 600

Known as Cast Steel, Carbon Steel, WCB or CS Gate Valve.
Sizes available: 2" ~ 12"
Size 14" ~ 32" available for made-to-order only.
Class 600 available for Made-to Order only.



  • - OS & Yoke, Rising Stem, Wedge type, Flanged End.
  • - Standard Graphite Packing.
  • - Other gasket material can be made available.
  • - Design and Manufacture according to API 600 or API 602.
  • - Face-to-Face dimensions according to ASME B16.10 - 2009.
  • - End Flange Dimension according to ASME B16.5 - 2009.
  • - Inspection and Test according to API 598 - 2009.



ANIX Part Number: GA40H5F Series



Download WCB Flanged Gate Valve ANSI 150 / ANSI 300 Product Literature.



WCB Flanged Gate Valve Class 150#

Download GA40H5F/150 Flanged Gate Valve Cut Sheet.

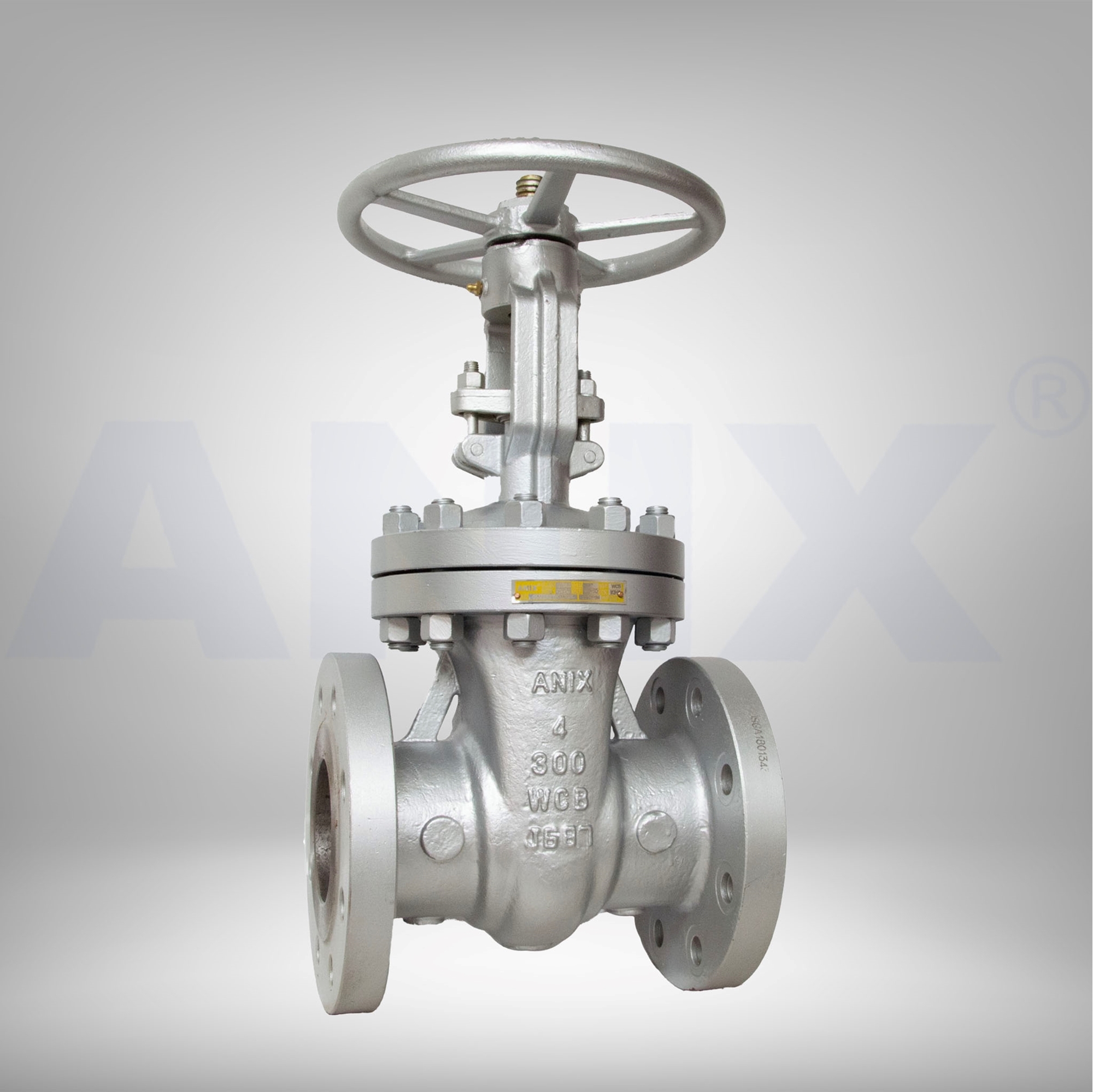

WCB Flanged Gate Valve Class 300#

Download GA40H5F/300 Flanged Gate Valve Cut Sheet.



  • - Carbon Steel Gate Valve Trim 8 ANSI Class 150 / 300 /600 RF
  • - Also known as Cast Steel, WCB, CS Gate Valve.
  • - OS & Yoke, Rising Stem, Wedge type, Flanged End.
  • - Standard Graphite Packing.
  • - Other gasket material can be made available.
  • - Design and Manufacture according to API 600 or API 602.
  • - Face-to-Face dimensions according to ASME B16.10 - 2009.
  • - End Flange Dimension according to ASME B16.5 - 2009.
  • - Inspection and Test according to API 598 - 2009.



ANIX Carbon Steel Gate Valves with Flange end connection manufactured and distributed by ANIX Valve USA are available in Class 150 or Class 300 type made of high quality WCB Carbon steel material.
