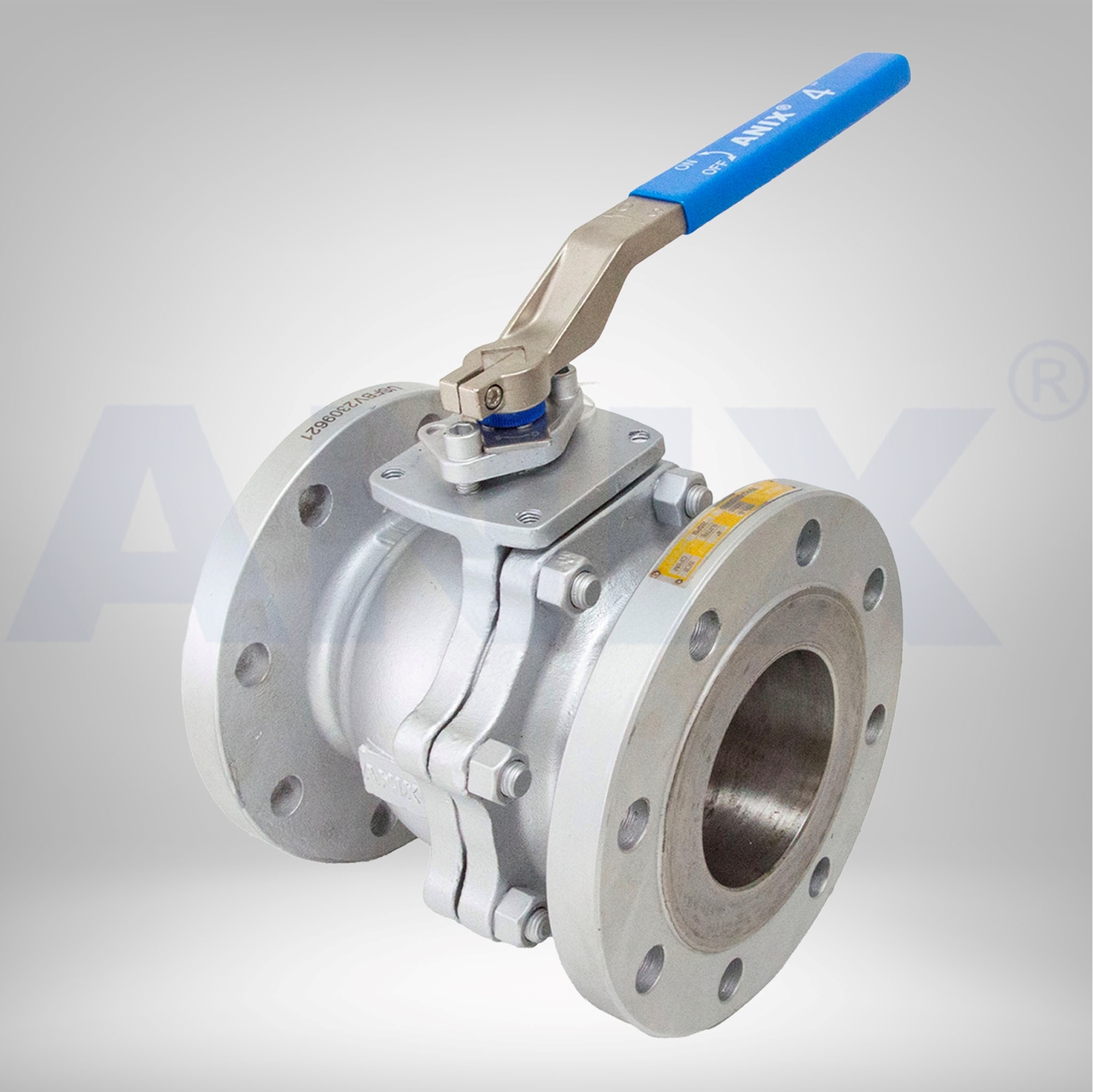

ANIX Carbon Steel Flanged Ball Valve ANSI Class 150 / 300

  • Full Port Floating Ball Valve
  • • Size: 1/2" to 1 1/4" (Solid SS316 Ball, Lever)
  • • Size: 1 1/2" to 8" (Hollow SS316 Ball, Lever)
  • • Size: 6" to 12" (Hollow SS316 Ball, Gear)
  • Features
  • • WCB A216 RFFE 2-PC CS Full Port Ball Valve ANSI 150/300
  • • A216 Cast Carbon Steel Body
  • • Full Port / Full Bore
  • • SS316 Ball & Stem, RPTFE Seat
  • • Flange End Connection according to ASME B16.5
  • • Lockable Handle
  • • Blow-Out-Proof Stem Design
  • • Graphite Packing
  • • Fire Safe and Anti-static Design with R-PTFE seat materials
  • • ANSI 150 or ANSI 300
  • • Suitable for Water, Oil, or Gas Medium Application
  • • Design fully complies with ASME B16.34 and API 607
  • • Tested and inspected in accordance with API 598
ANIX Part Number: FBV42R5F/150 & FBV42R5F/300 Series

WCB Cast Carbon Steel Flanged Ball Valve

Download WCB Flanged 2PC Ball Valve ANSI 150 Product Catalog

Download WCB Flanged 2PC Ball Valve ANSI 300 Product Catalog

Download FBV42R5F/150 Flanged 2PC Ball Valve Data Sheet

Download FBV42R5F/300 Flanged 2PC Ball Valve Data Sheet

Product Description

Introducing the ANIX Carbon Steel CS Flanged 2PC Full Bore Ball Valve ANSI 150 / ANSI 300, featuring a robust WCB Carbon Steel CS Body and Flange Connection according to ASME B16.5. This valve is designed with a Locking Handle for enhanced security and a Blow-Out-Proof Stem Design for increased safety. It includes Graphite Packing and a Fire Safe, Anti-static Design with R-PTFE seat materials. The valve supports a Working Pressure of Class 150 for Water, Oil, or Gas Medium Applications with the FBV426F/150, and Class 300 for Water, Oil, or Gas Medium Applications with the FBV426F/300. Complying fully with ASME B16.34 and API 607 standards, and rigorously tested in accordance with API 598, this ANIX valve guarantees top-tier performance and reliability. Enhance your industrial operations with the superior quality of the ANIX Carbon Steel CS Flanged 2PC Full Bore Ball Valve.

ANIX Carbon Steel 2-Piece Full Port Flanged Ball Valve manufactured and distributed by ANIX Valves USA are available in Class 150 or Class 300 made of high quality WCB Carbon steel material. Valve Gasket has graphite packing with Fire safe design.
